Packaging: Sample "B"
iPlanet^TM Application Server Samples

If you already deployed the packaging sample B, you can run the application by clicking here.

This samples illustrates functional isolation of modules. A single EAR file (pkgingB.ear) contains two EJB JAR files (pkgingBEJB1.jar and pkgingBEJB2.jar) and two WAR files (pkgingBWAR1.war and pkgingBWAR2.war)

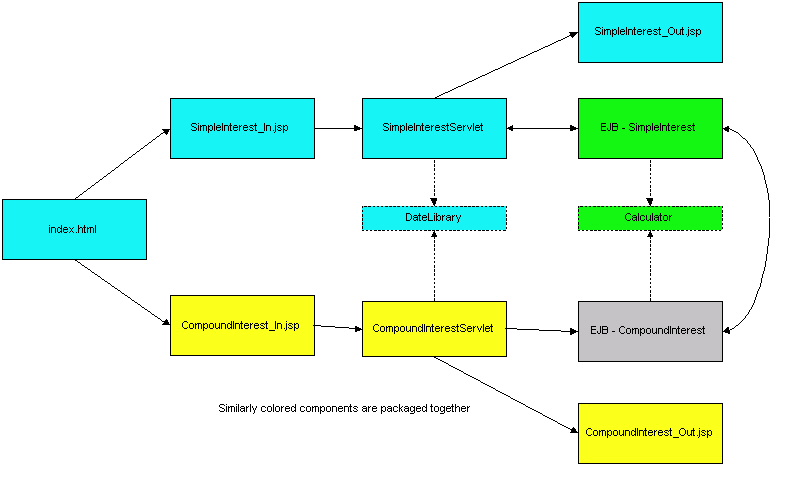

The Simple Interest and Compound Interest web components are divided into separate WAR files (except for the shared static index.html which is arbitrarily included in pkgingBWAR1.war). The two WAR files communicate with each other (specifically index.html from WAR1 accesses CompoundInterest_In.jsp from WAR2). This sample also demonstrates session sharing across WAR modules. SimpleInterest_Out.jsp and CompoundInterest_Out.jsp display the current contents of the session. The session stores the latest values (if any) entered on the forms SimpleInterest_In.jsp and CompoundInterest_In.jsp. This separation of components also demonstrates that shared libraries (DateLibrary.class in this case) need to be included in only one of the modules of the EAR file. In this sample, the common library is included in pkgingBWAR1(see fileview of pkgingBWAR1). Including the common library class in more than one does not make a difference as the classloader will, at any one time, load only one copy of the class .

The SimpleInterest and the CompoundInterest EJB components are packaged in separate EJB JAR files. This approach demonstrates cross EJB JAR invocation in an EAR file. This separation of components also demonstrates that shared libraries (Calculator.class in this case) need to be included in only one of the modules of the EAR file. In this sample, it is included in pkgingBEJB1(see fileview of pkgingBEJB1). Including the common library class in more than one does not make a difference as the classloader will, at any one time, load only one copy of the class .

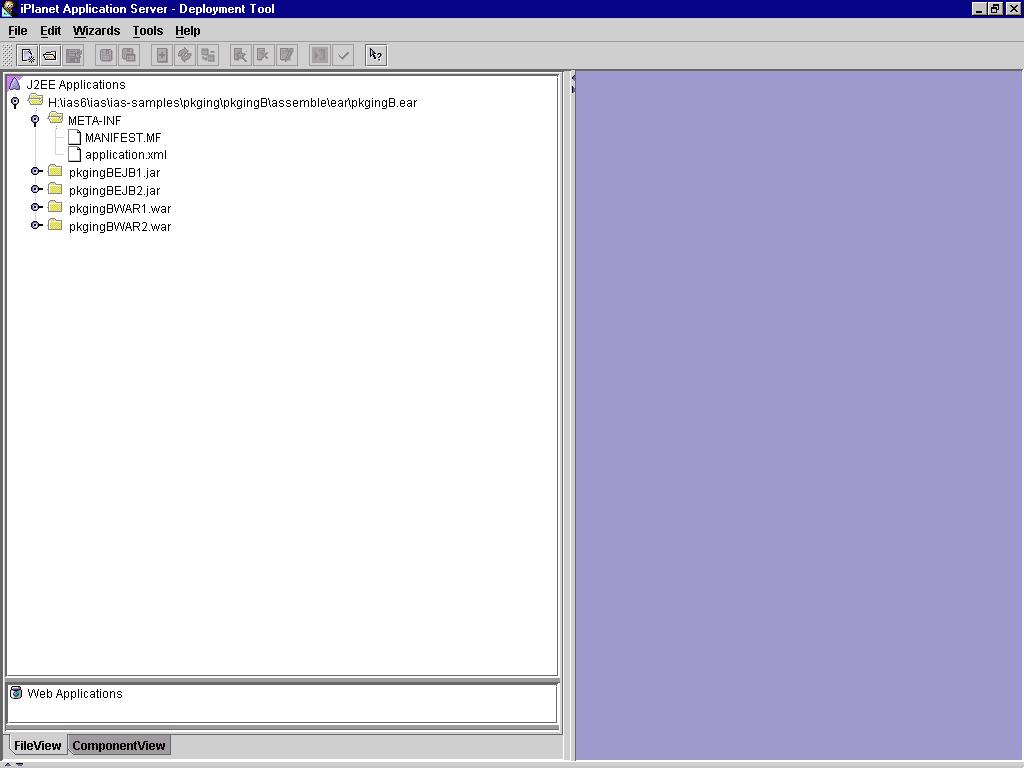

The component view of the final application (pkgingB.ear) shows the contents - pkgingBWAR1.war, pkgingBWAR2.war, pkgingBEJB1.jar and pkgingBEJB2.jar. The file view for the app pkgingB is shown  here.

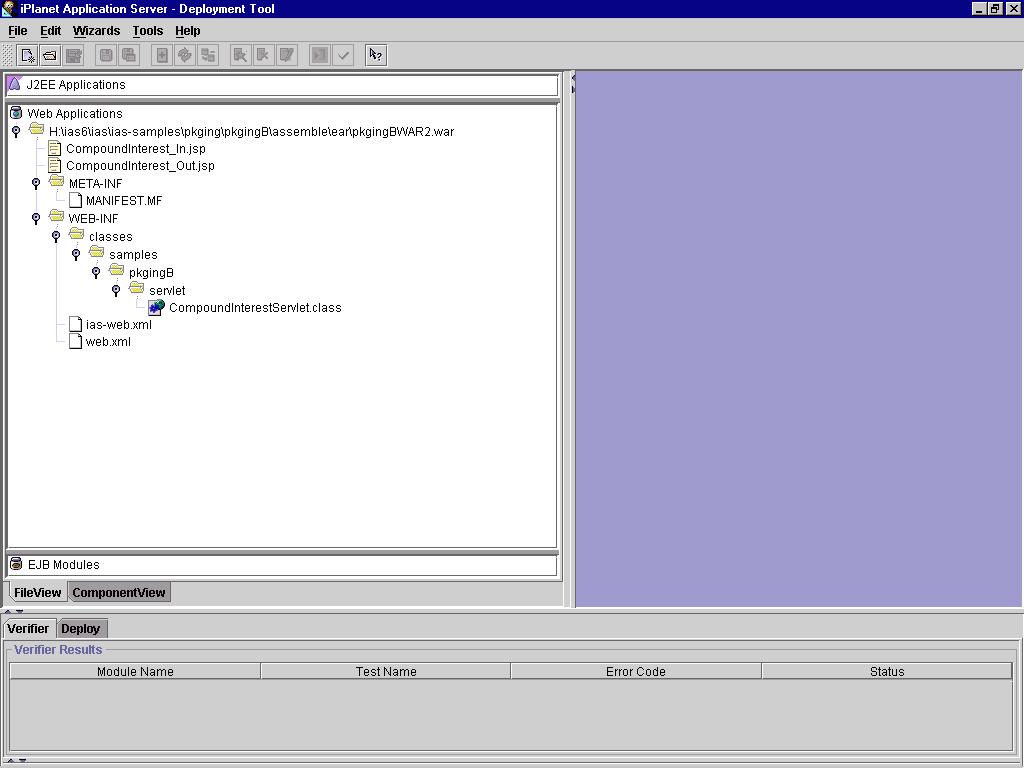

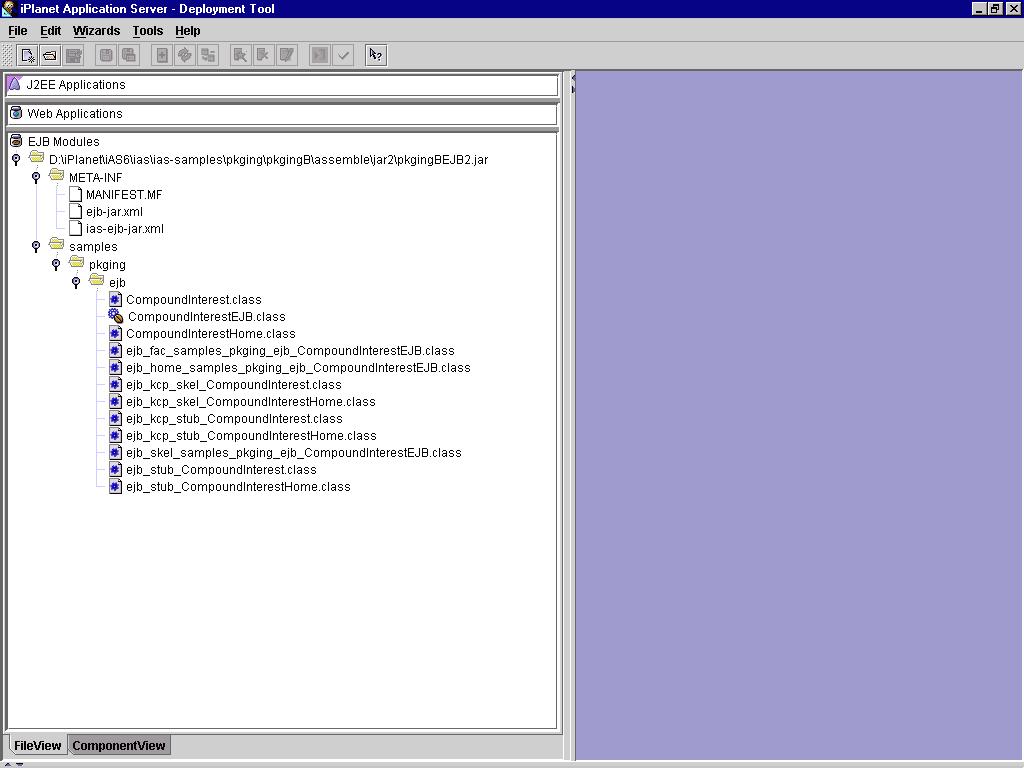

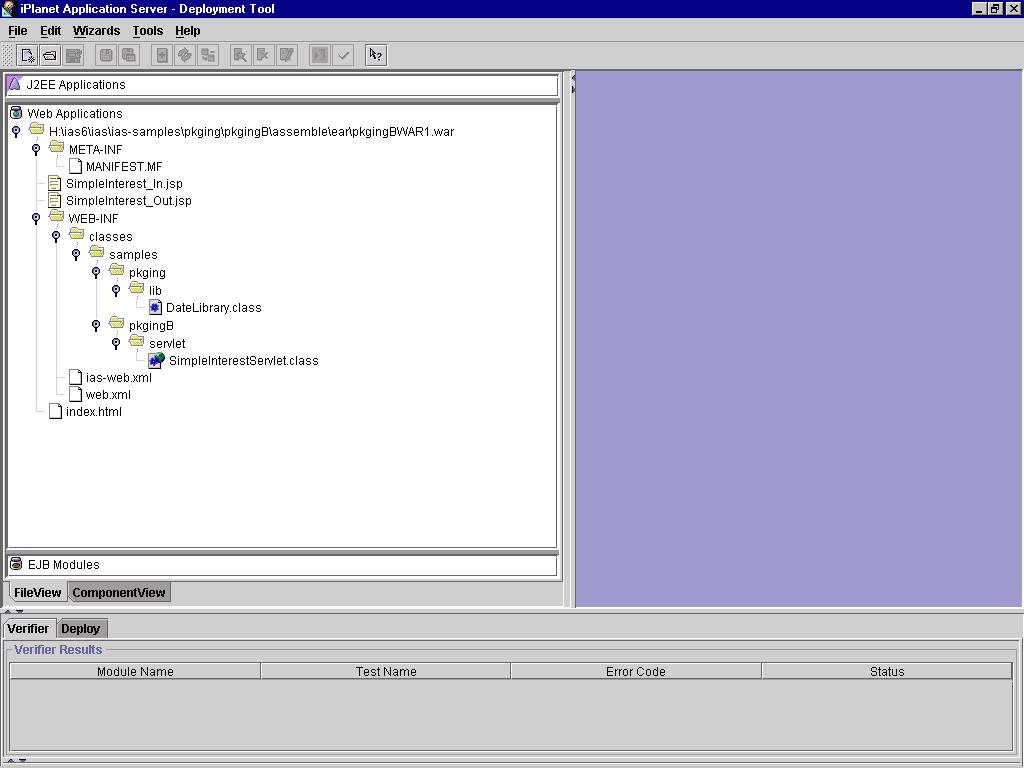

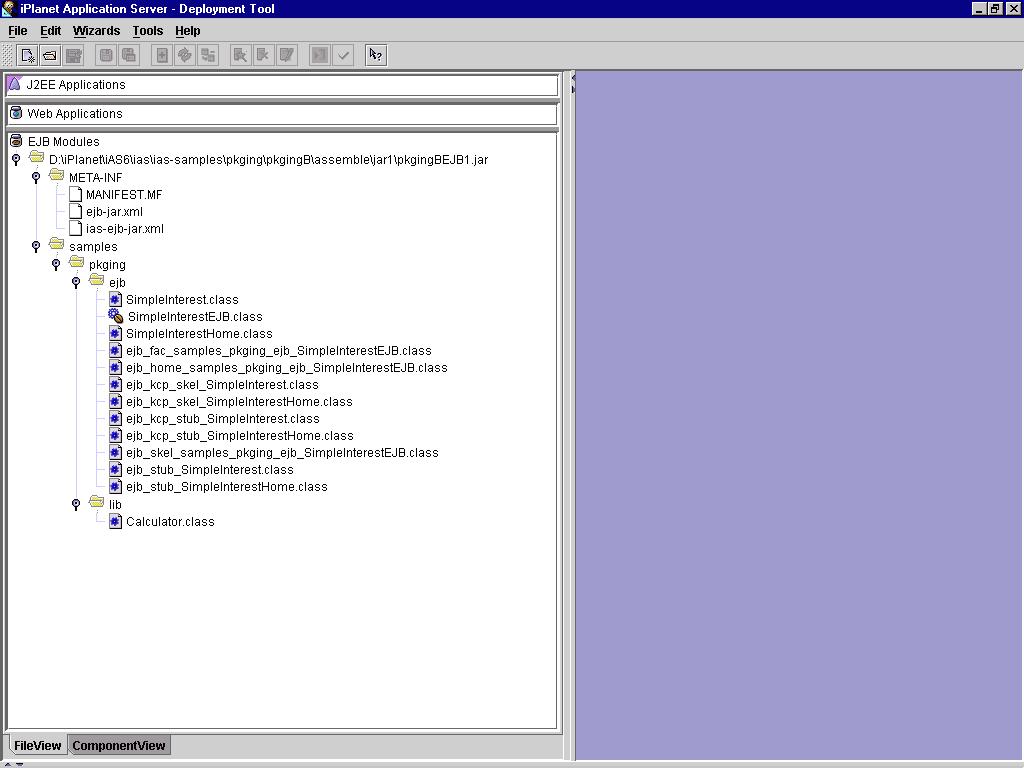

File Views for : pkgingBWAR1.war, pkgingBWAR2.war, pkgingBEJB1.jar, pkgingBEJB2.jar, pkgingB.ear

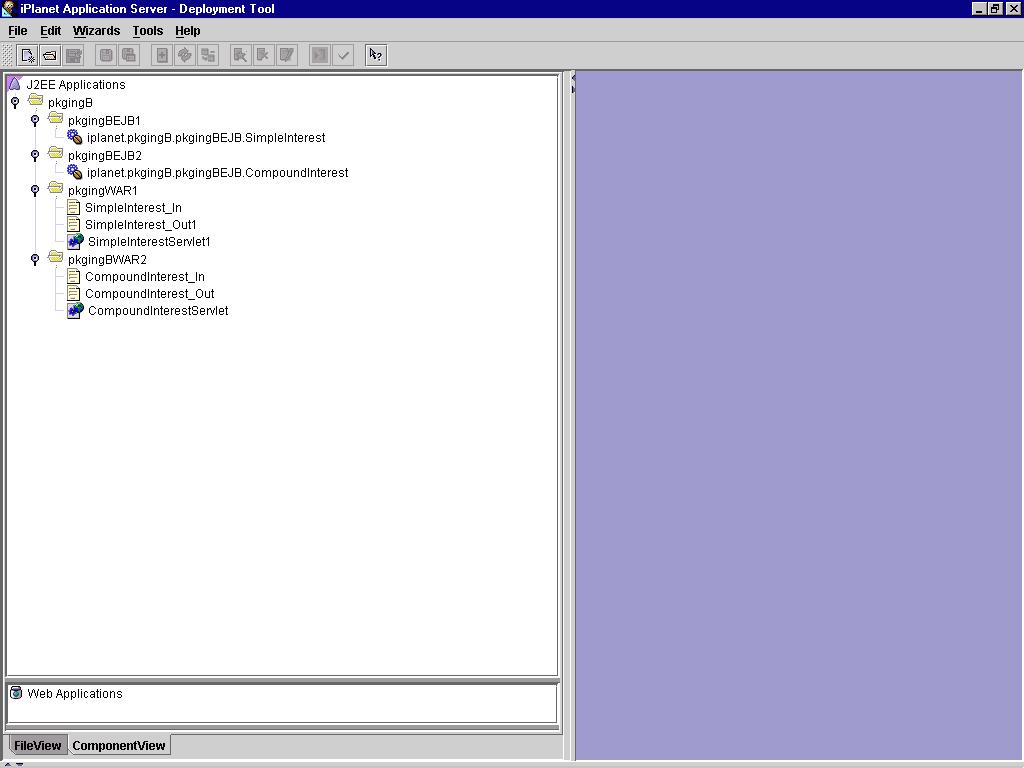

Component View for all modules.

The following concepts are illustrated in this sample:

• Multi WAR packaging in an EAR
• Multi EJB JAR packaging in an EAR
• Cross WAR communication
• Cross EJB JAR communication
• Session sharing between two WARs.

Session is shared between the two WARs only if the session implementation is marked as distributed (as has been done for this sample). If not, session is kept local (also known as "Lite" session)

Assembling the Application

Deploying the Application

Running the Application


Assembling the Application

• Go to install_dir/ias/ias-samples/pkging/pkgingB/src. Execute the command 'build'. This command executes the default target that compiles the Java sources, creates the EJB stubs and skeletons and packages the WAR, EJB JAR and the final EAR file. The prebuilt and ready-to-use EAR file under the sample directory can also be used for deployment.
• The resulting EAR file can be found at:

  install_dir/ias/ias-samples/pkging/pkgingB/assemble/ear/pkgingB.ear

Deploying the Application

Navigate to the directory containing the application's EAR file and run the iasdeploy command:

iasdeploy deployapp pkgingB.ear

This command deploys the application to the local machine.

Running the Application

Run the application by accessing the following link:

http://<hostname>:<port>/NASApp/pkgingB1/index.html

Choose either "Simple Interest" or "Compound Interest". Enter the values on the input form and press "Submit". Once data is entered on the forms, it is stored in session to be reused. Also, all the contents of the session are dumped out on the page to demonstrate session sharing.
